NEW: PEM Electrolysis Stacks
now available!
The HIAT develops and produces PEM Electrolyzer
up to 100 bar differential pressure. More Details
Where can I get high-performance CCMs for
Electrolysis and fuel cell applications?
The HIAT develops and produces application-oriented
CCM's/ MEA's based on different membranes. More Details
How can you increase the performance
of fuel cells?
The HIAT uses thin tissue - reinforced membranes for
the production of CCMs. More Details
How does the commercialization of the
fuel cell technology succeed?
HIAT conducts research on cost-effective coating methods for fuel cells-
catalysts. More Details
Where and when does it make sense
to use a fuel cell?
The HIAT prepares feasibility studies for technical and business
economic implementation of hydrogen technologies. More Details
Is the PEM electrolysis also without precious metal-
catalysts possible?
The HIAT develops efficient platinum-free catalysts. More Details
How can research results be transferred into concrete applications?
The HIAT has various products within the framework of projects
for hydrogen and fuel cell technology. Mor Details

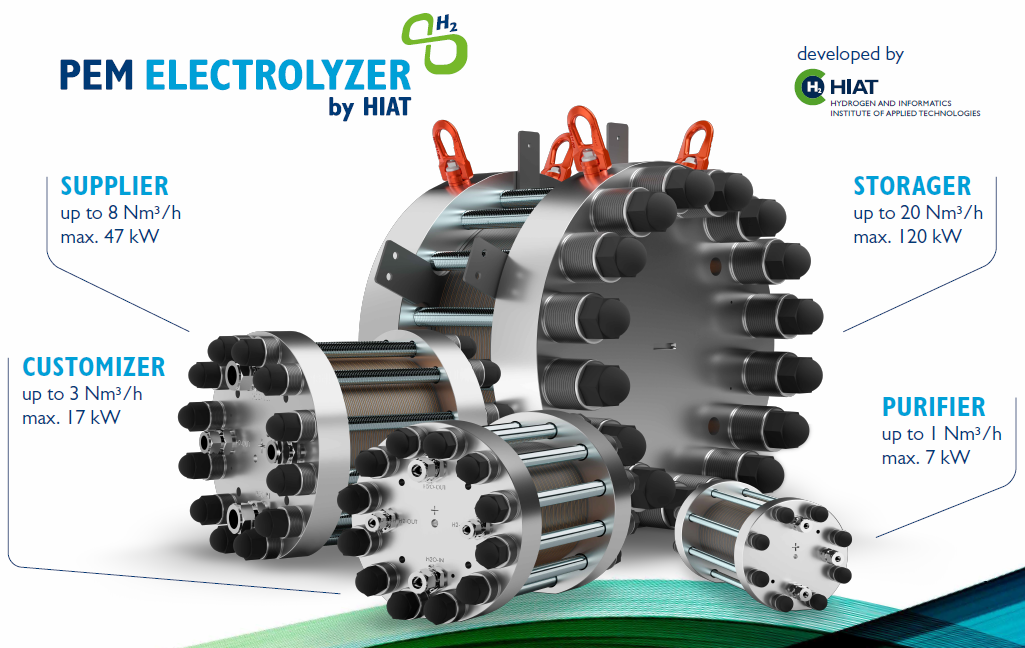

PEM Electrolysis Stacks

In recent years, HIAT has succeeded in developing a novel PEM Electrolysis Stack to marketability. High differential pressures of up to 100 bar (1450 psi) were achieved by using innovative construction and manufacturing techniques. The high performance core components have been developed especially for this application at HIAT and have been integrated into their own stack design. Our spin-off company, Hydrogen Innovation GmbH, is now active in the areas of sales and further development of the PEM electrolysis stacks under the brand name "PEM Electrolyzer by HIAT". Detailed information about the offers of Hydrogen Innovation GmbH can be found under the following link:
Homepage Hydrogen Innovation GmbH
Create your individual request for a PEM Electrolysis Stack:
Inquiry Form (DOC, 69KB)
Inquiry Form (PDF, 247KB)
Request a quotation at

PEMFC Electrocatalysts


PEM Electrolysis

Development of innovative electrocatalysts-
For the application in PEFC-, HT-PEFC-
and DMFC electrodes.
Learn more
Development and production of catalyst-coated membranes (CCMs) for use
PEM-Water electrolyters.
Learn more

DMFC Technology


Process and process development

Development of core components and stacks
for direct methanol fuel cells (DMFC).
Learn more
Development and optimization of chemical and physical processes for the production of PEM fuel cells / PEM electrolytic components.
Learn more

Energy storage technology

HIAT develops novel products and processes
for storing regeneratively generated current with selected accumulator technologies.
Learn more

PEMFC electrocatalysts

Novel electrocatalysts
HIAT develops innovative electrocatalysts for PEFC, HT-PEFC, electrolysis and DMFC electrodes. Various carbon nanotubes (CNTs) are used as carbon carriers. The deposition as Pt and PtRu alloys on the CNTs takes place by a nasschemisches procedure. The production process results in particles with a minimum diameter of 2-4 nm and a homogeneous distribution. Electrocatalysts consisting of CNTs significantly increase the performance of PEM fuel cells.

PEM electrolysis

Internal core components for PEM water electrolyzers
HIAT develops and produces catalyst-coated membranes (CCMs) for use in PEM water electrolyzers, using commercially available electrocatalysts and membranes. The Institute has extensive experience in the composition and structure of electrolysis electrodes, carriers (gas diffusion layers) and membranes.

In addition, HIAT has patented a new platinum-free cathode for PEM water electrolysis CCMs. By replacing the platinum with a low-cost metal oxide catalyst Material costs can be significantly reduced. The advantages of these new CCM are:

• educed costs: expensive platinum is not needed
• extended shelf life: the metal oxide catalyst is far less prone to poisoning
   in comparison to platinum
• efficiency: high current densities and hydrogen production rates

DMFC technology

DMFC Engineering
HIAT has many years of experience in the development of core components for direct methanol fuel cells (DMFC). The research & amp; Development of HIAT for DMFCs includes a wide range of topics:

• development of novel hydrocarbon membranes,
   mit verbesserter Stabilität und reduziertem Methanol-Crossover
• Highly resistant and efficient electrocatalysts for DMFC,
   Use of CNTs as catalyst support
• development of catalysts, electrodes and membrane electrode assemblies for one
   wide application - of passive 100% methane-vapor-fed micro-
   fuel cells (< 1 Wel), up to 250 Wel DMFC stacks for stand-alone power supply systems

HIAT also operates on a DMFC system controller, e.g. Through the use of extensive models, microcontrolled devices and SMDs.

Process and process development

Process engineering
HIAT has broad experience in the design, control and optimization of chemical and physical processes in the production of fuel cell components. Through the Utilizing state-of-the-art technologies, HIAT continually optimizes time-saving and cost-saving work processes while ensuring high quality standards.
Topics covered are:

• Preparation of electrocatalysts
• Production of electrode pastes
• Manufacture of membrane electrode assemblies (MEAs),
   catalyst-coated membranes (CCMs), gas diffusion electrodes (GDEs)
• Screen printing technology, squeegee and inkjet technology
• Direct coating of substrates, drawing methods and hot pressing processes
• Design and milling of bipolar plates
• Gasket of fuel cells using automatic dispensing technology

Energy storage technology

Based on the participation of Stadtwerke Schwerin GmbH, HIAT develops innovative products and processes for the storage of regeneratively generated electricity Selected accumulator technologies (decentralized energy storage systems). We are increasingly working on the programming of the battery management system and the interface between man machine and the cascading of accumulator technologies. Furthermore, particular reference is made to a simple operation of these systems. The network operator and not the house owner will be able to monitor and control the facility. This results in many advantages in terms of control and network transparency. Through our research and development activities in this area we are taking innovative paths with regard to smart grid and smart metering.
